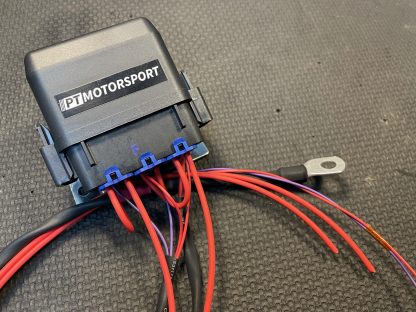

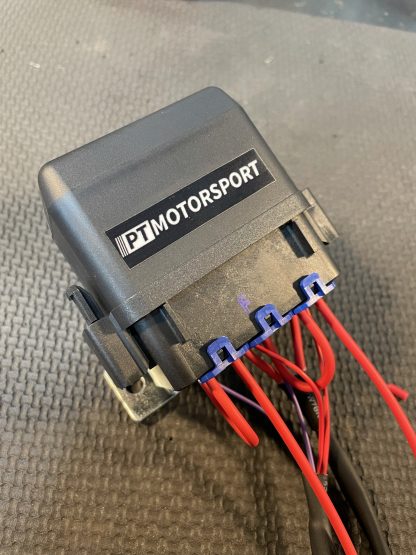

This dual relay fuse box is the perfect addition to your surge tank installation, providing fuses and relays in a professionally finished box, adding simplicity and professionalism to your installation.
Description
This dual relay fuse box is the perfect addition to your surge tank installation, providing fuses and relays in a professionally finished box, adding simplicity and professionalism to your installation.
HD Version features wiring and terminals capable of safely powering the biggest electric fuel pumps on the market.
Also appropriate for use with large Thermofans, Large Lights or Electric Power Steering pumps\systems.
Fuse box contains two relays and two fuses for use with two fuel pumps.
Removable mounting bracket included.
IP67 rated, meaning total dust and water proofing
All wiring is military specification MIL-W-81044 (spec 44) Raychem wiring, wiring is free at the end of the braid for integration to your existing harness.
Wiring is identified and documented, ready for installation.
Options for two different configurations.

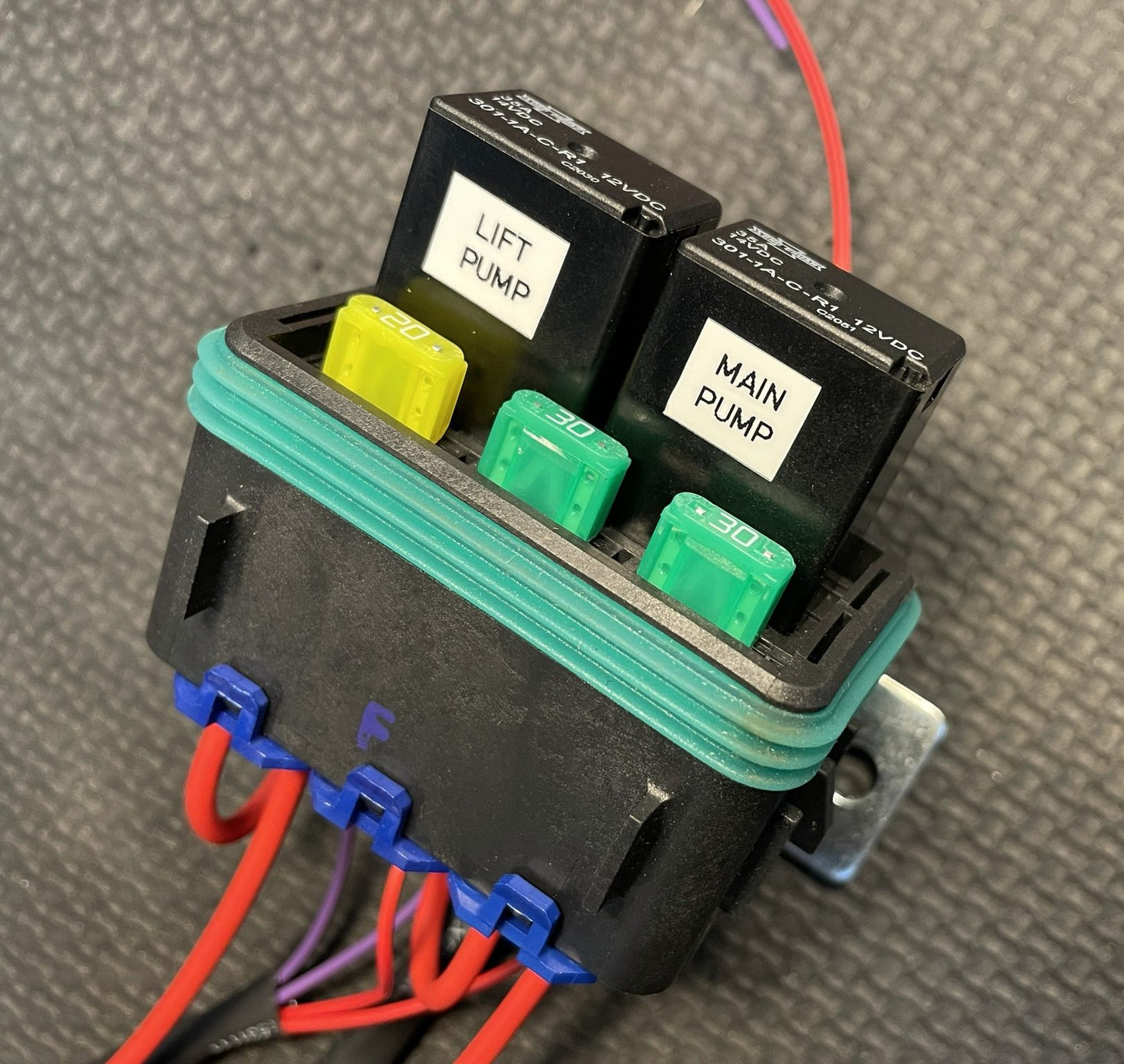

Configuration 1:
One 20A rated circuit for use with the lift pump
One 30A rated circuit for use with the main pump

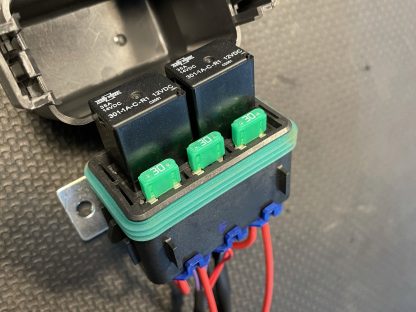

Configuration 2:
Two 30A rated Circuits for use with Twin main pumps. (Staged or synchronized)
PLEASE NOTE: ALL PARTS ARE SUBJECT TO AVAILABILITY unless stock level indicated on product page.
